Spektrum Firma 150 Amp 3S-6S Brushless SMART ESCSPMXSE1150

Spektrum Firma 150 Amp 3S-6S Brushless SMART ESCSPMXSE1150

Regular price $319.99 AUD
Regular price Sale price $319.99 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Description

Overview



Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Features



  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Waterproof
  • Multiple options for easy programming
    • Button programming
    • Smart ESC Programming Box
    • SmartLink USB Updating and Programmer application
  • Multi-point protection
    • Automatic LiPo low-voltage cut-off
    • Thermal protection
    • Failsafe protection
    • Over-current protection
  • Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Rugged plastic case with mounting tabs
  • Aluminium heat sink for high efficiency
  • Cooling fan
  • Adjustable high-power BEC
  • Firmware updatable through the Smart ESC Programming Box
  • High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
  • Limited 1-year manufacturer warrantySpecifications





  • Forward: Yes
  • Reverse: Yes
  • Brake: Yes
  • Time Delay Brake: Yes
  • Continuous Maximum Current: 150A (950A Max Burst)
  • Input Voltage: 11.1 - 22.2V

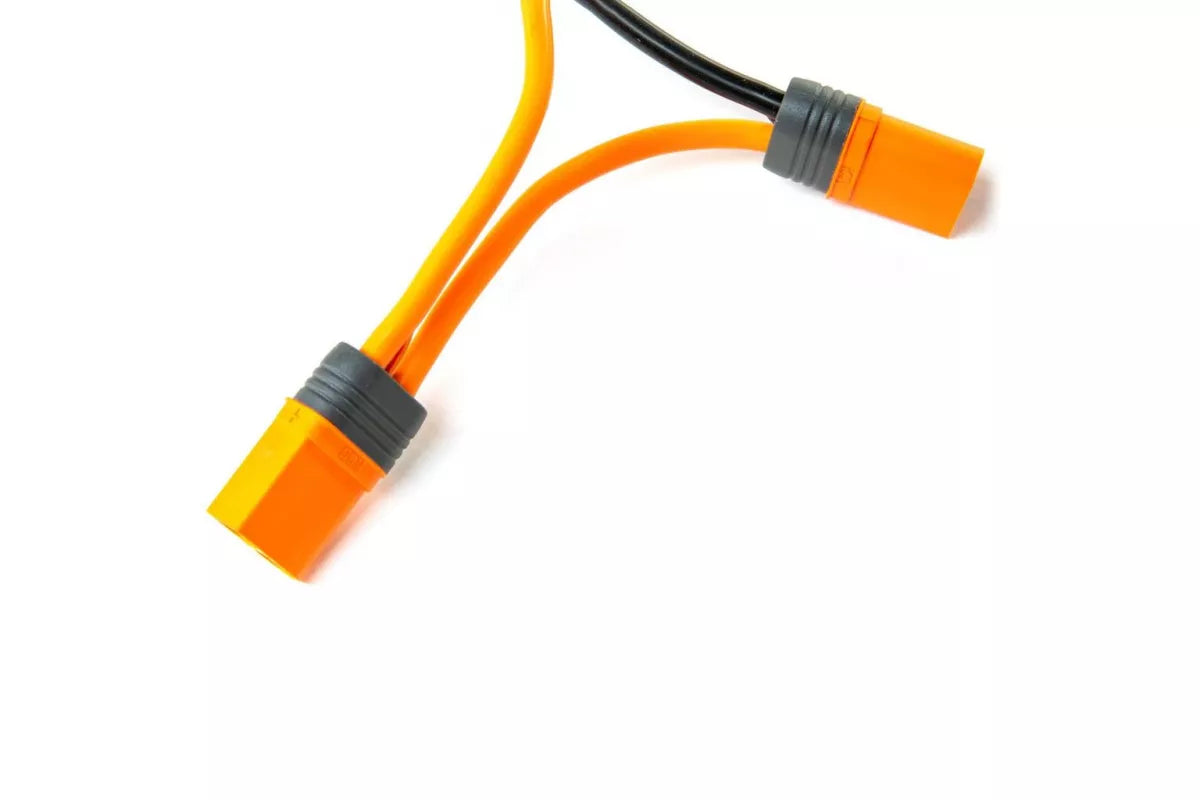

  • Input Connector Types: IC5
  • Output Connector Types: 4mm Female Bullet
  • Length: 58mm (2.3")
  • Width: Case: 47.5mm (1.9")
  • With w/ Tabs: 59.5mm (2.3")
  • Height: 38.5mm (1.5")
  • Weight: 238g (8.4 oz)
  • BEC Voltage: 6V (5A)



Included item



  • Compatible Receiver & Battery
Specifications
ESC (Electronic Speed Controller)
For Motor Type: Brushless
Max Voltage: 22.2
Continuous Amps: 150
Motor Connectors: 4mm Bullet
Battery Connector: IC5
LiPo Cut-off: Yes
Programmable: Yes
Waterproof Design: Yes
Cooling Method: Fan
BEC Voltage: 6
