TRAXXAS TRX4 SCALE & TRAIL CRAWLER LAND ROVER - DESERT SAND Product Code: 82056-4SAND

Take The Path Less Traveled

The Traxxas TRX-4 Scale and Trail Crawler is an all-new Traxxas design that is loaded with innovation that instantly obsoletes the status quo with exciting new features, versatility, and capability. In other words, we built it the Traxxas way, rugged, powerful, and ready for fun!

Underneath the authentic scale look is a machine built for extreme off-road capability that takes you to new places and new adventures. Exclusive portal axles deliver maximum ground clearance that dramatically turns no way into no problem. Whether you are enjoying outdoor trails or getting technical on the rocks, the remote-locking front and rear differentials and high/low range transmission provide unmatched driving versatility.

Features

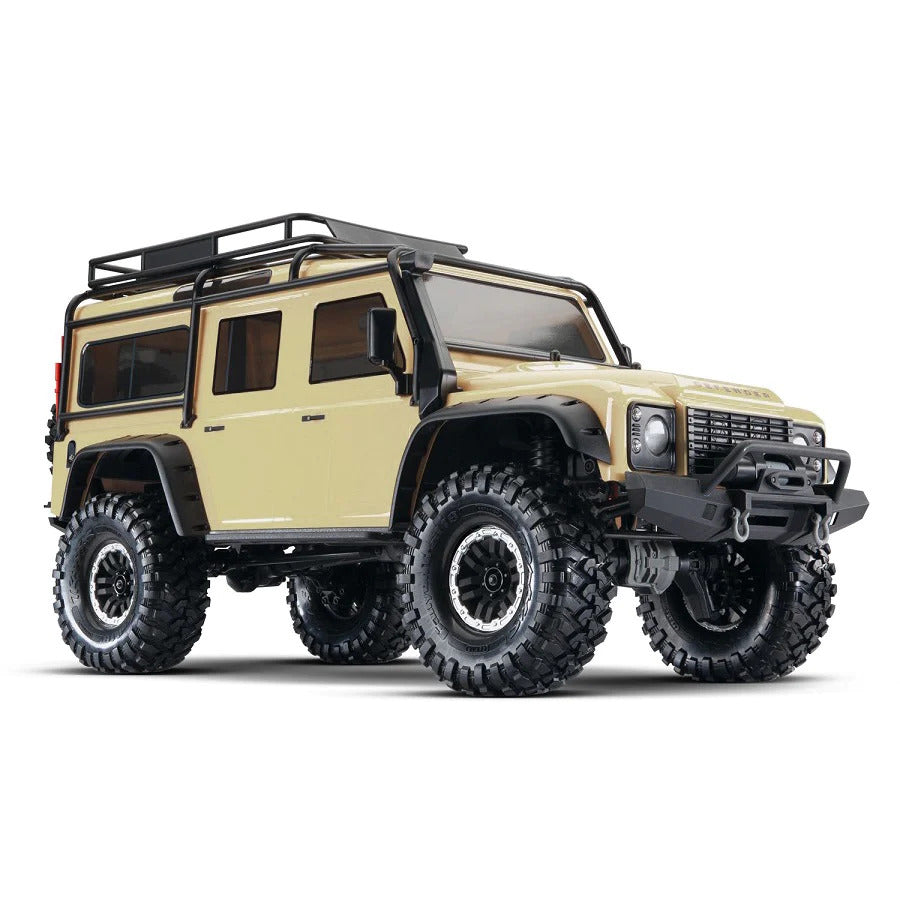

Officially Licensed Land Rover Defender Body

• Injection molded scale details including grille, snorkel, and side mirrors
• Rugged, functional roll cage
• Tough fender flares

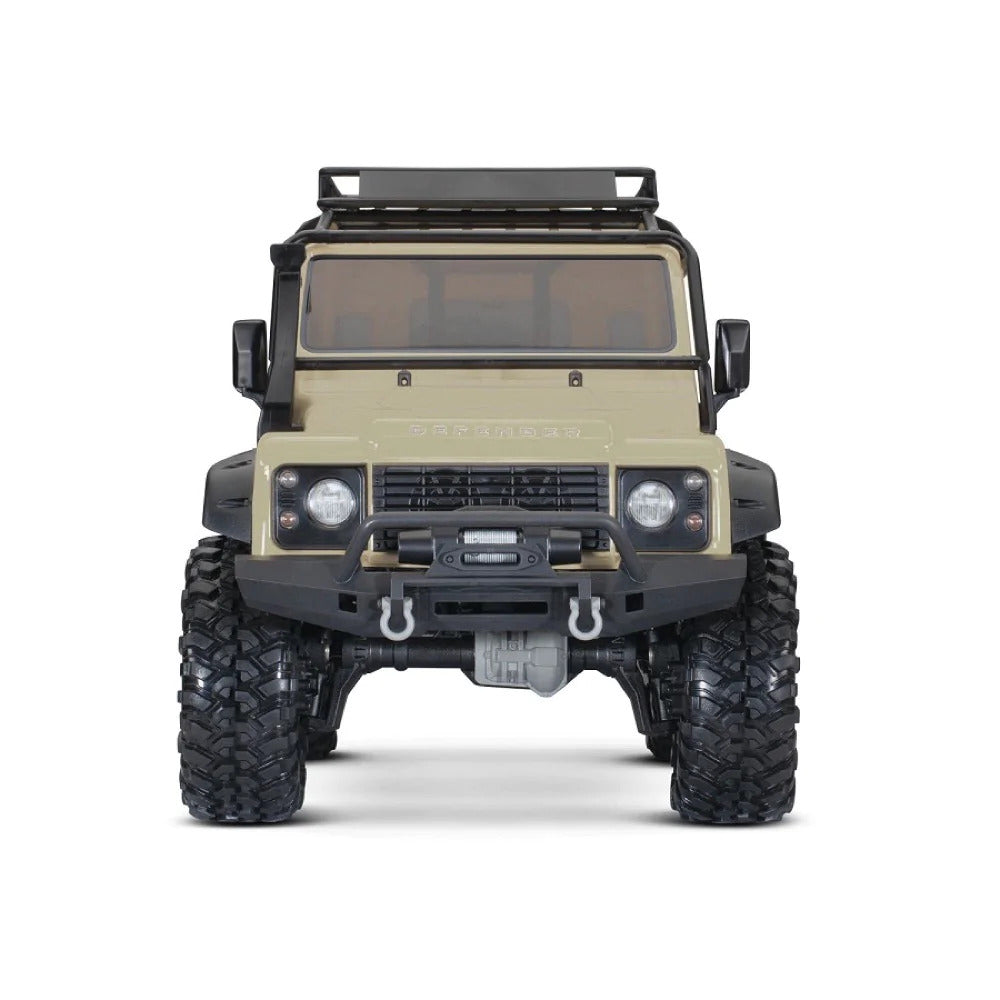

• Front bumper with tow hooks and replica winch

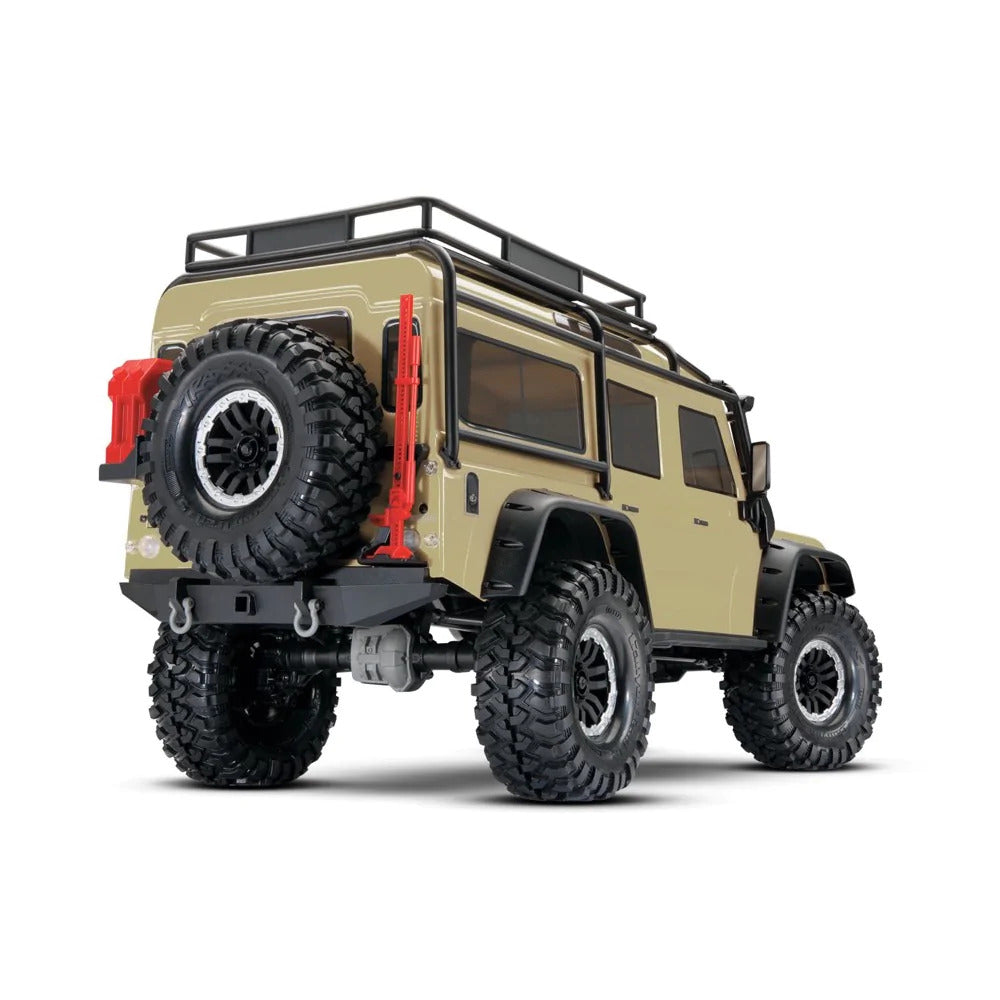

• Rear bumper with scale accessories and functional spare tire
• Full Nylon composite wheel wells and floor pans

Trail-tuned XL-5 HV Waterproof Electronic Speed Control

• Fully waterproof design
• Five drive profiles
• Sport Mode forward / brake / reverse
• Race Mode forward / brake / no reverse
• Training Mode 50% forward / 100% brake / 50% reverse (patented)
• Trail Mode forward / brake / reverse / with trail-tuned drag brake in neutral
• Crawl Mode forward / instant reverse - no neutral with 100% hill holding brake
• Traxxas EZ-Set one-button setup
• Large, efficient heat sink
• Wide voltage latitude 6 cell NiMH (7.28.4V) and 23S LiPo (7.411.1V)
• Two stage low voltage protection (LVD)

Motor

• Powerful Titan 21T reverse rotation motor with internal cooling fan
• Precision, preset gear mesh adjustments
• Motor retention separate from gear mesh

Portal Axles

• Increase ground clearance (3.14)
• Eliminate torque twist
• Steel gears
• Improve axle geometry and reduce strain on driveshafts

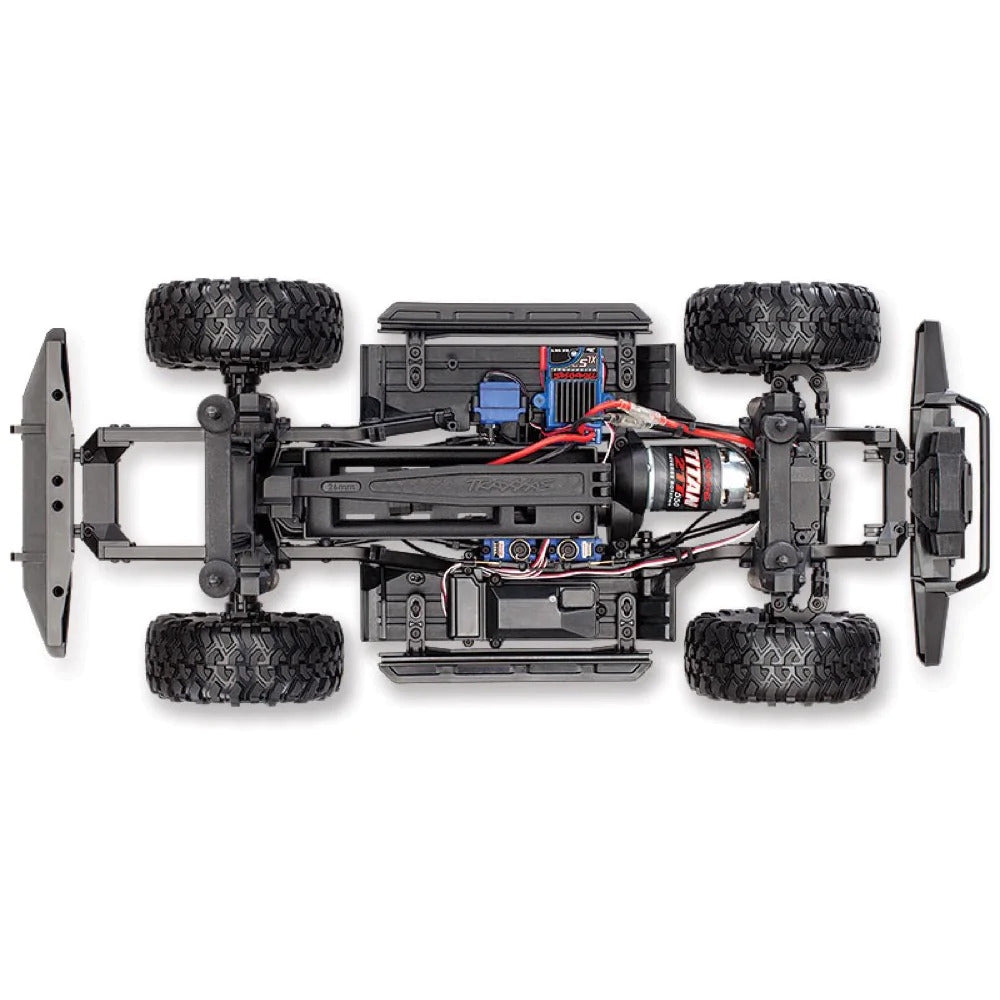

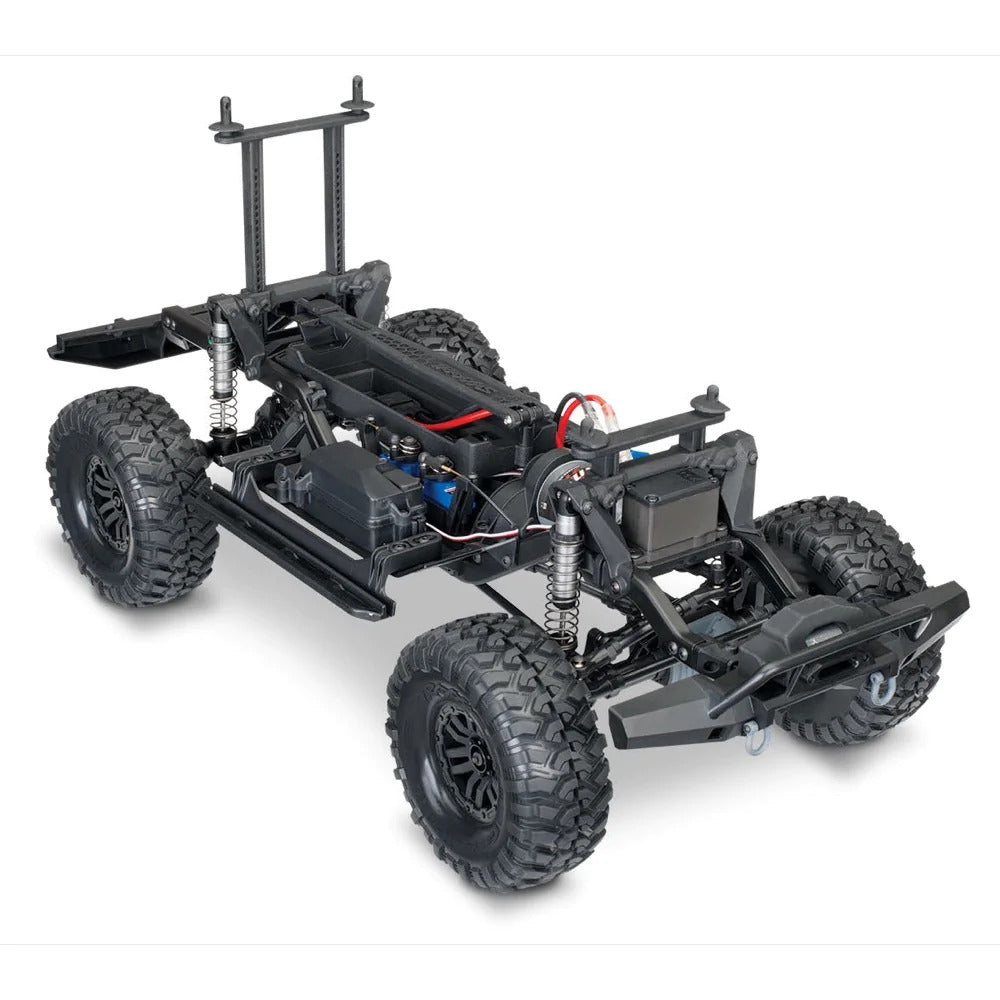

Rigid Steel Frame

• 1.5mm thick steel frame rails increase torsional rigidity

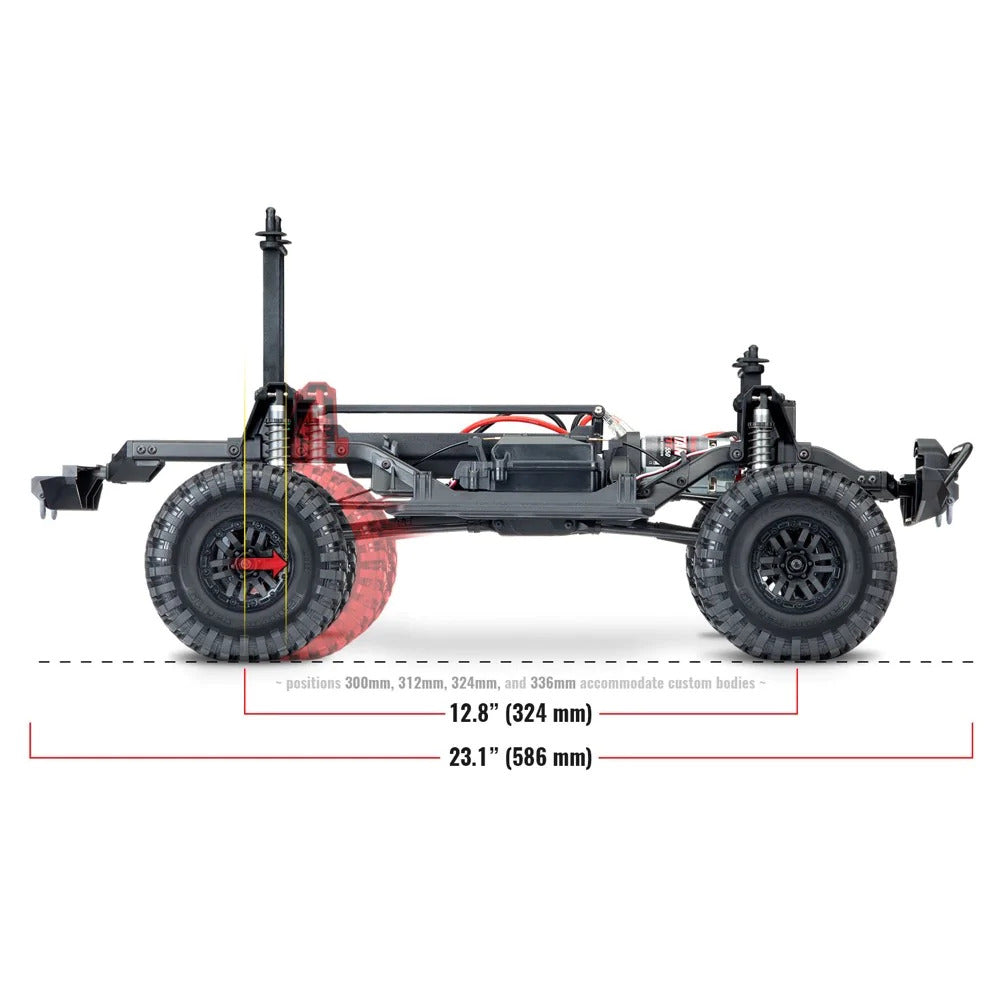

• Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
• Adjustable rear shock tower positions for SWB and LWB configurations
• Bumpers adjust fore and aft
• Rugged rock rails adjust for width
• Wire routing clips integrated into frame rails

Drivetrain

• Full-time shaft driven 4-wheel drive
• Tough 6mm stub axles
• Steel front CV driveshafts
• Hardened steel rear axle shafts
• Remote locking steel gear differentials with cable-actuation
• Steel gear transfer case

Innovative Battery Compartment

• Hinged battery strap allows quick and easy battery access
• No pins to lose
• Accommodates different height batteries
• Accepts full-size long battery packs
• Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)

Transmission

• Two speed high/low range with remote shifting
• Dual horizontal shafts
• Twin friction plate slipper clutch
• Easily removed for servicing

Steering

• Chassis mounted 2075X metal gear digital servo
• Superior 45 degree steering angle
• Direct steering (no servo saver)
• Steering geometry corrected for bump steer

Suspension

• Front 3 link with panhard
• Rear Triangulated 4 link
• Heavy-duty rod ends with steel hollow balls
• 5mm diameter steel link rods with 4mm threaded ends

Aluminum GTS Shocks

• Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
• Silver-anodized aluminum bodies
• Threaded bodies with collars easily adjust ride height
• Silky smooth damping for the toughest trails
• O-ring cap seal and dual X-ring shaft seals

Wheels and Tires

• 1.9 Canyon Trail tires with trail-tuned foam inserts
• Pre-glued and mounted to tough black scale wheels
• Trail tuned S1 rubber compound
• 12mm steel hex

Transmitter

• TQi 2.4GHz 4-channel transmitter
• Traxxas Link enabled
• Telemetry ready #6533 5-channel micro receiver with failsafe
• Automatically stores and loads settings for up to 30 Traxxas Link enabled models
• Exclusive Cruise Control feature for extended trail driving
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle endpoints
• High 13ms frame rate and near-zero latency for responsive control

Patented O-Ring sealed watertight receiver box keeps the micro receiver dry
Sealed Ball Bearings
Hex hardware with rust-resistant black oxide coating

Includes

• TRX-4, Ready-To-Race model
• XL-5 HV waterproof electronic speed control
• Titan 21T reverse rotation motor
• TQi 2.4GHz radio system with cruise control
• High quality maintenance tools

Requires

Batteries

TRX-4 accepts a wide variety of NiMH (4 cell) and LiPo (2s, 3s) batteries.

Charger

AA Alkaline Batteries

Four AA alkaline batteries for the transmitter.
