Arrma Infraction BLX All-Road Truck, RTR, Silver, ARA7615V2T2
Arrma Infraction BLX All-Road Truck, RTR, Silver, ARA7615V2T2
Regular price
$1,070.00 AUD
Regular price
$1,200.00 AUD
Sale price
$1,070.00 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

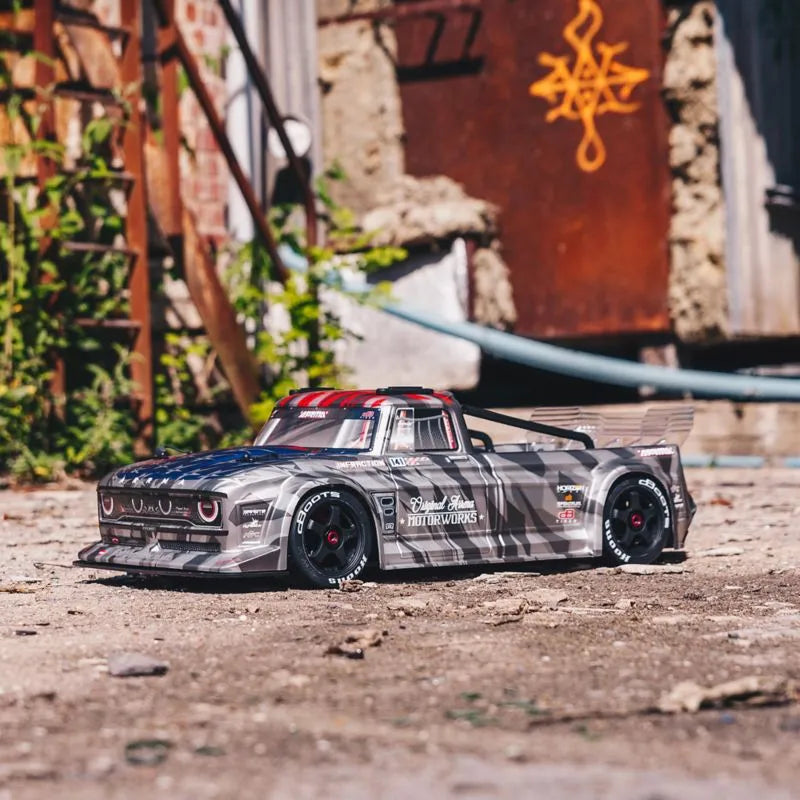

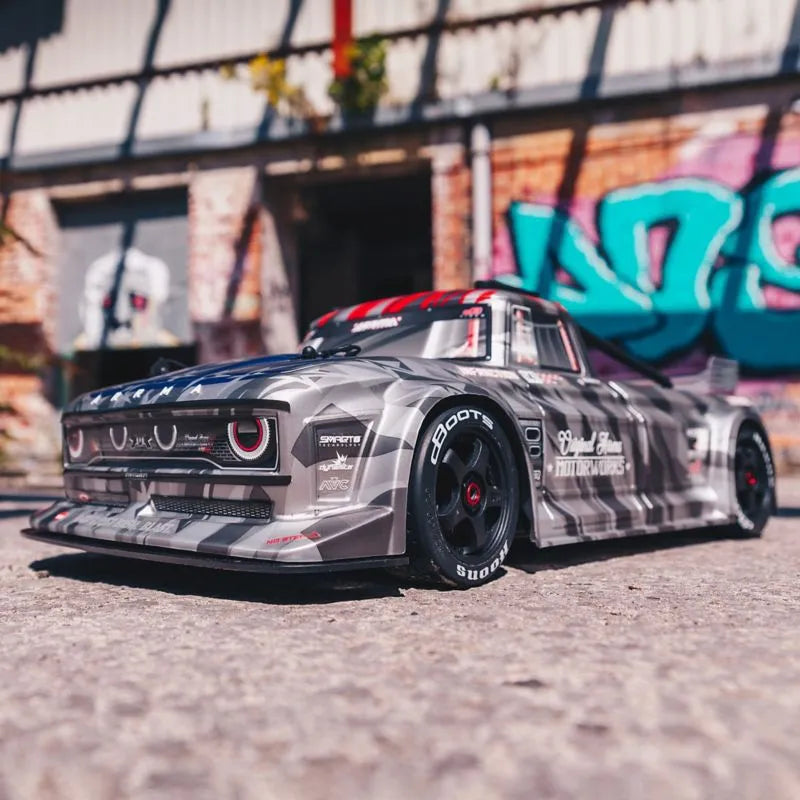

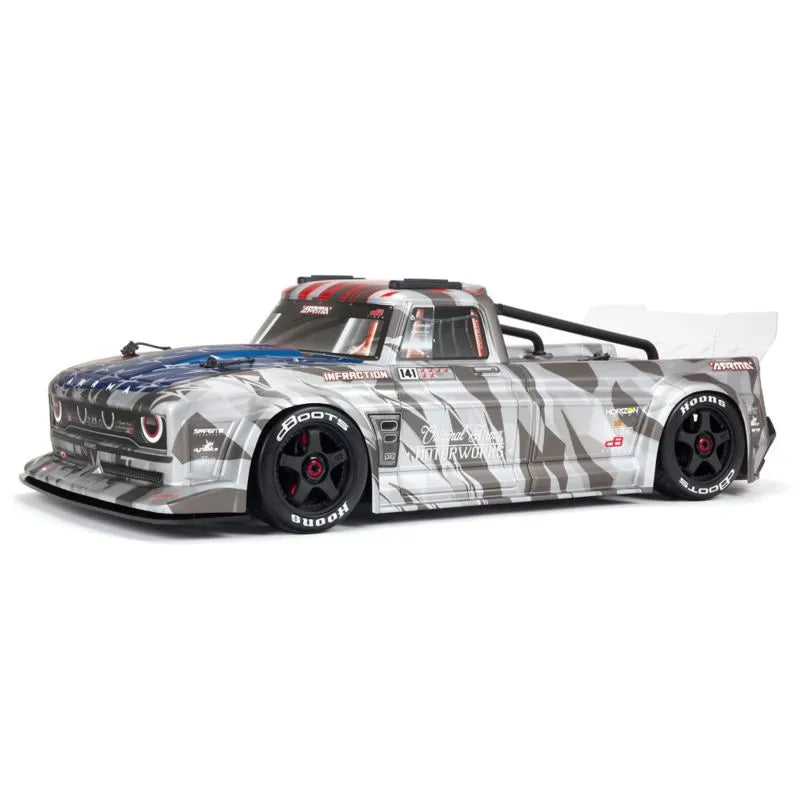

Take high-speed street bashing performance to another level with the 1/7 scale ARRMA® INFRACTION™ 6S BLX 4WD RTR. Capable of 80+ MPH speeds out of the box over on-road, dirt, and oval tracks, it now includes a handbrake and Spektrum® Smart electronics.
- Spektrum® 3-Channel DX3™ 2.4GHz DSMR® radio and SR6110AT Receiver with AVC® (Active Vehicle Control™)
- Ergonomic steering wheel for precise control in all conditions
- On-the-fly adjustable AVC® gain for personalized handling set-up
- Convenient voltage level indicator for Spektrum® Smart batteries
- Convenient handbrake button for on-demand drifting
- Download the free Spektrum® Dashboard™ app for iOS or Android to:
- Connect your mobile device wirelessly via Bluetooth to your DX3™ transmitter*
- View real-time telemetry data including ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM
- * Requires Bluetooth module SPM6741, available separately
- ARRMA® ADS-15M Steering Servo
- Waterproof*
- Metal-geared
- 195 oz-in (15kg-cm) torque @ 6V

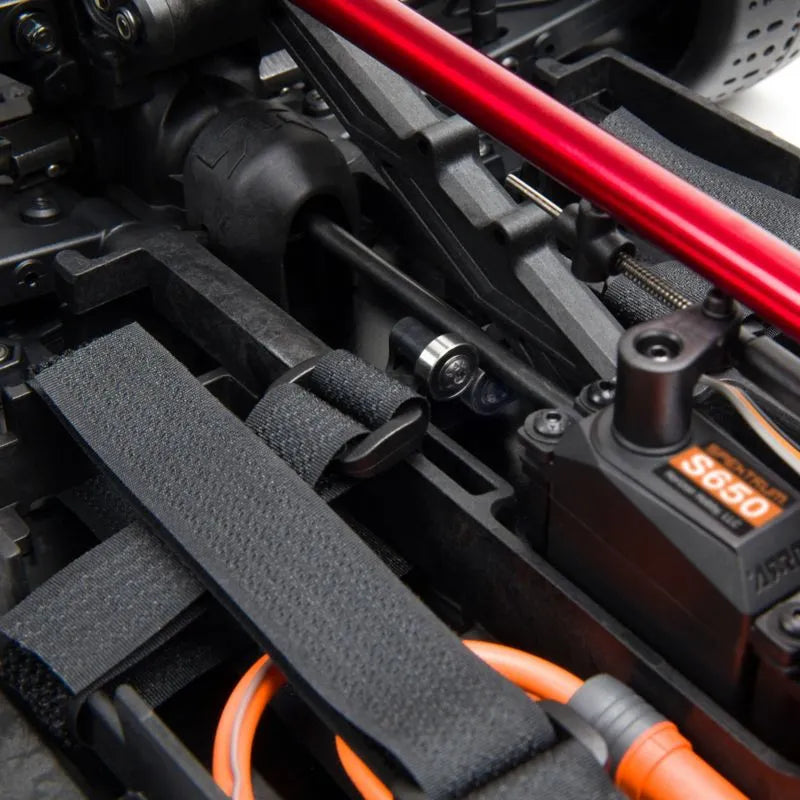

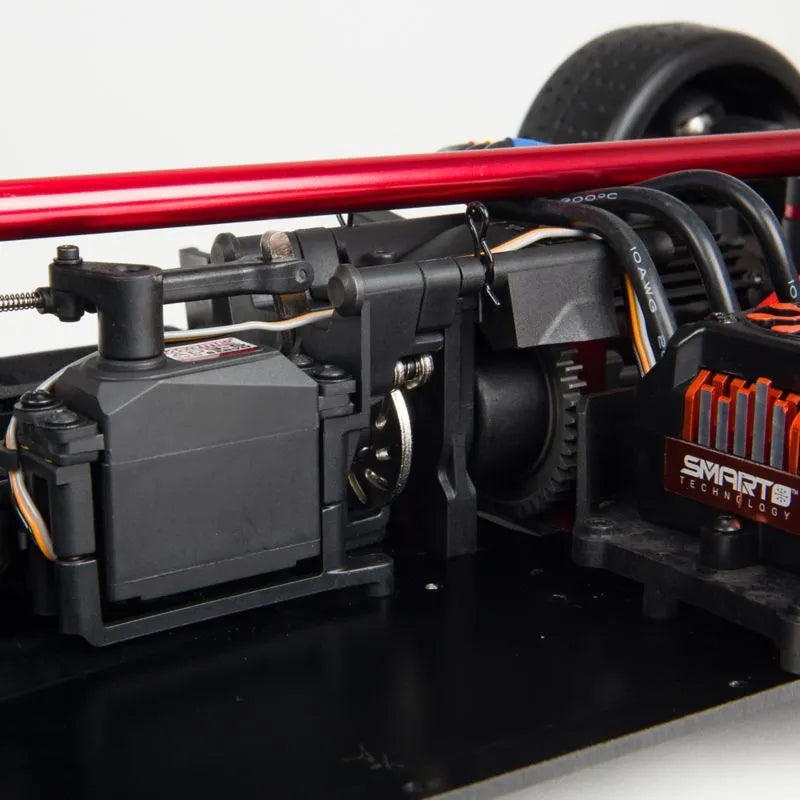

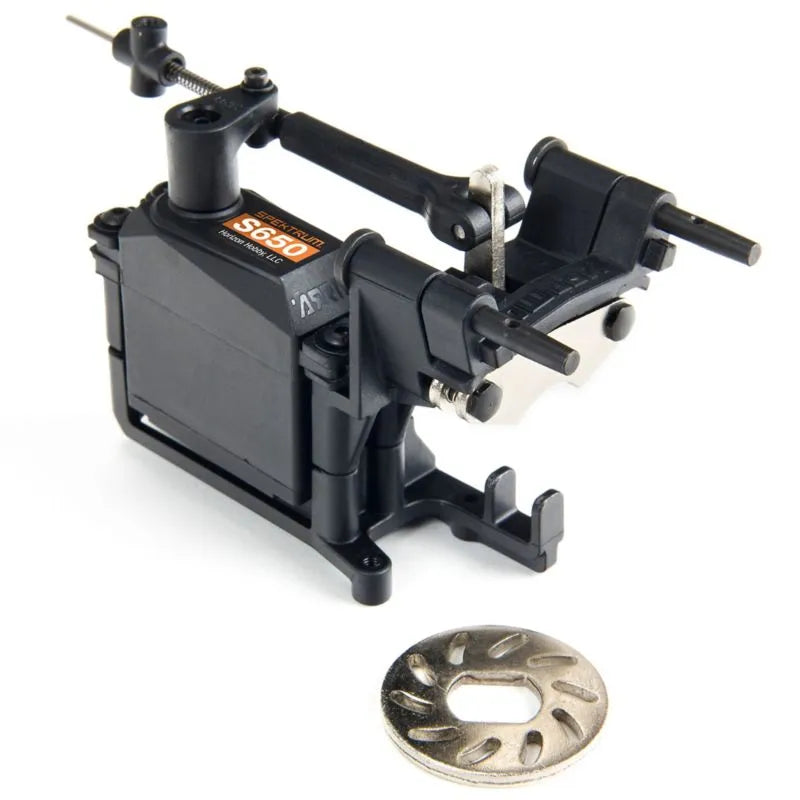

- Spektrum® SPMS650 Brake Servo
- Waterproof*
- Plastic-geared
- 83 oz-in (6kg-cm) torque @ 6V

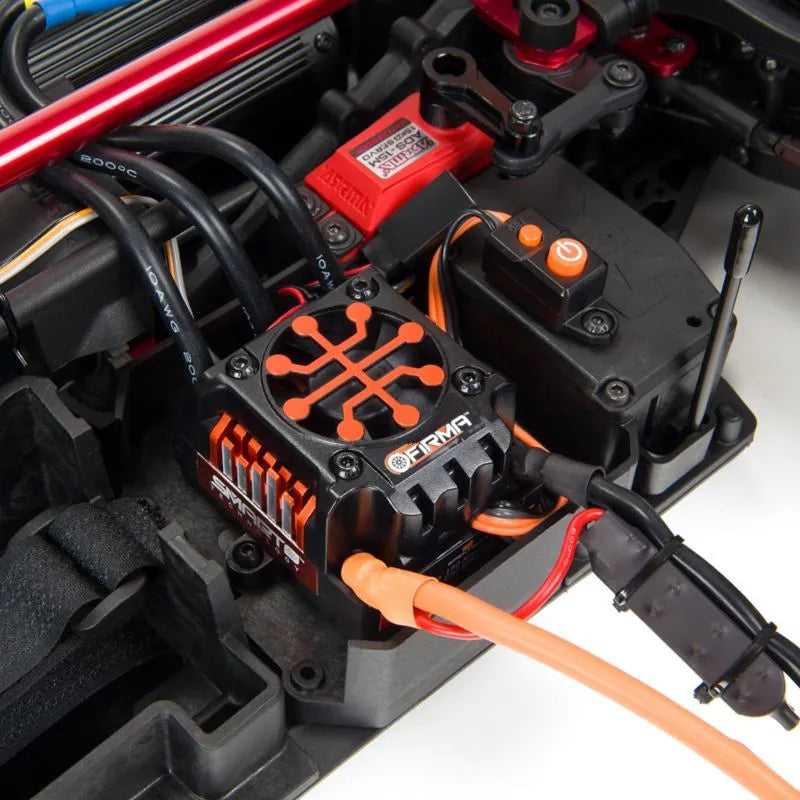

- Spektrum® Firma™ 150A Smart ESC
- Waterproof*
- Handles 4S/6S power
- IC5® connectors (EC5™ compatible)

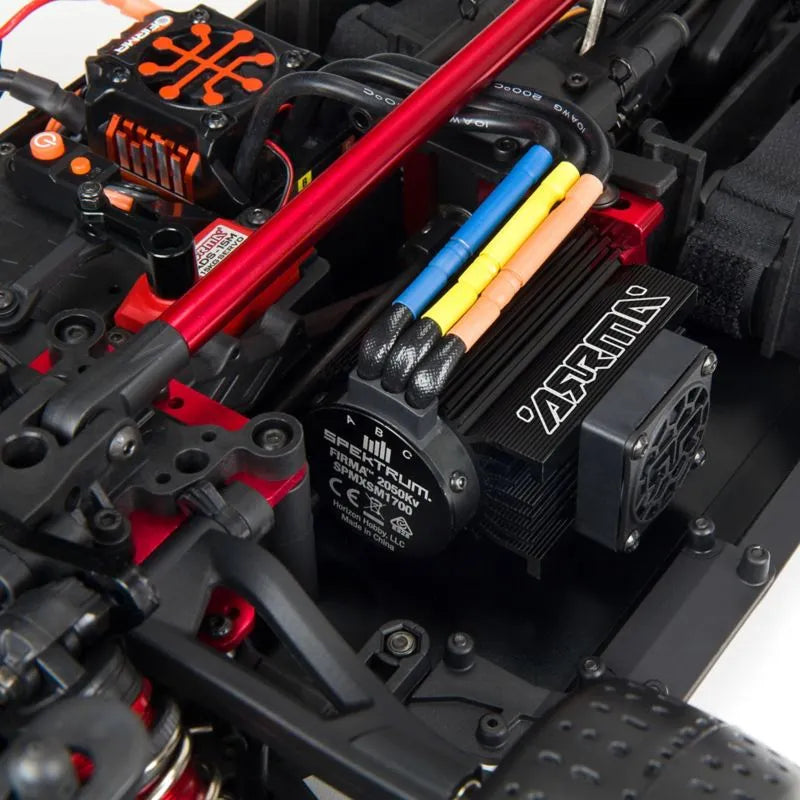

- Spektrum® Firma™ 4074 2050Kv Brushless Motor with Safe-D pinion gears
- New electronics module
- Improved range
- New handbrake feature
- Mechanical rear brakes for stunts and drifting
- Convenient DX3™ transmitter handbrake switch
- Chassis handbrake module with vented disc brake

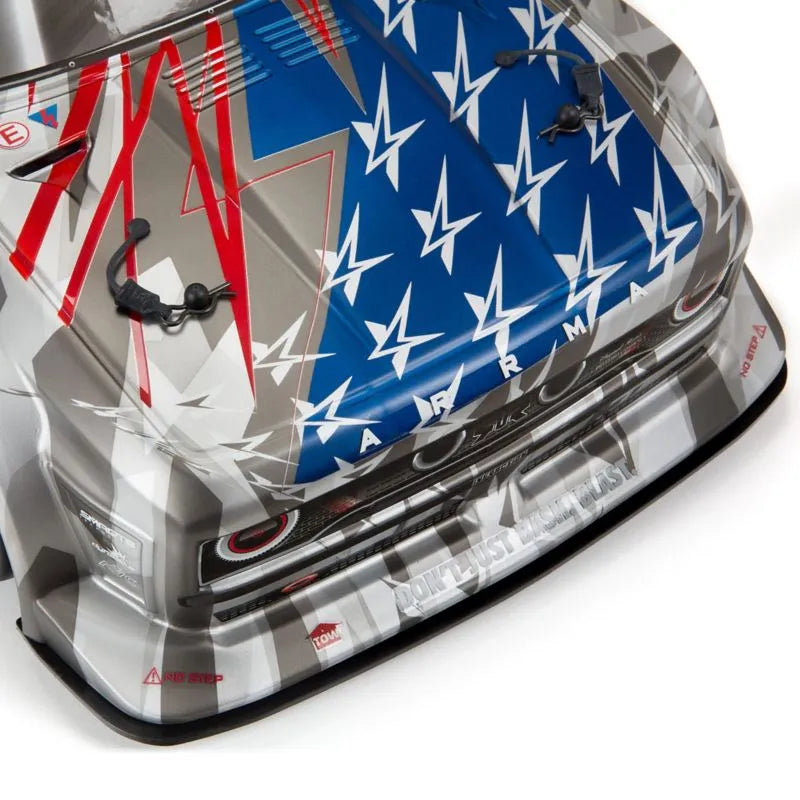

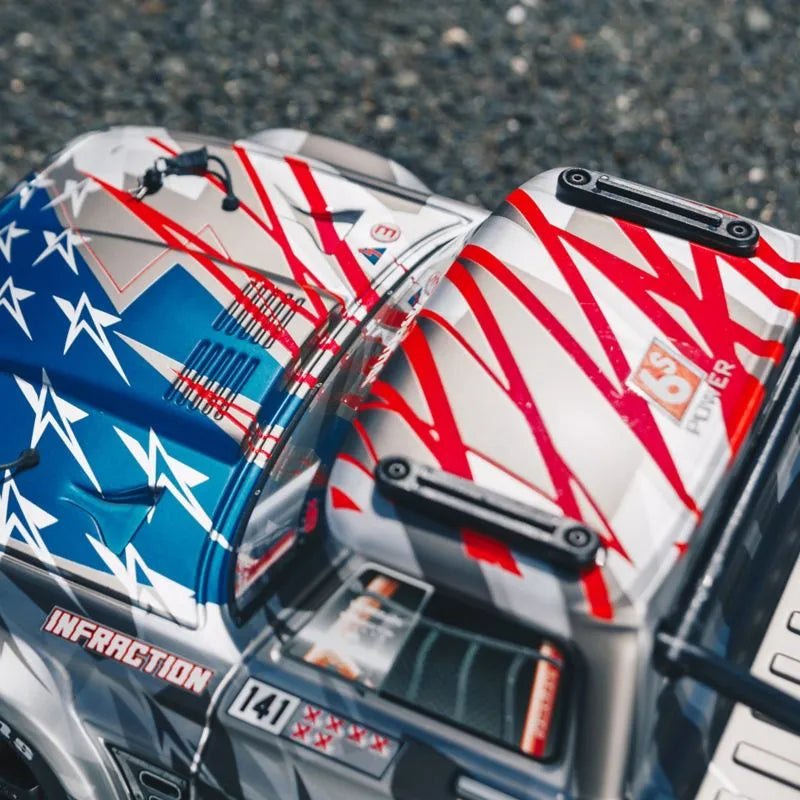

- Fresh street body look with matte gloss effect designs
- Tunable wing for customizing the downforce

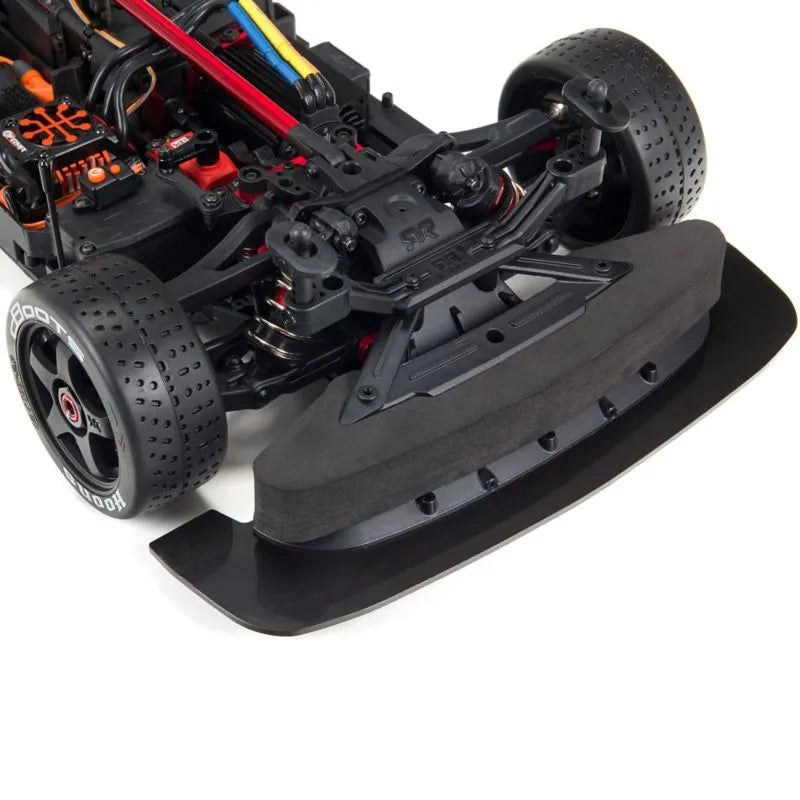

- Full-width front splitter balances downforce distribution

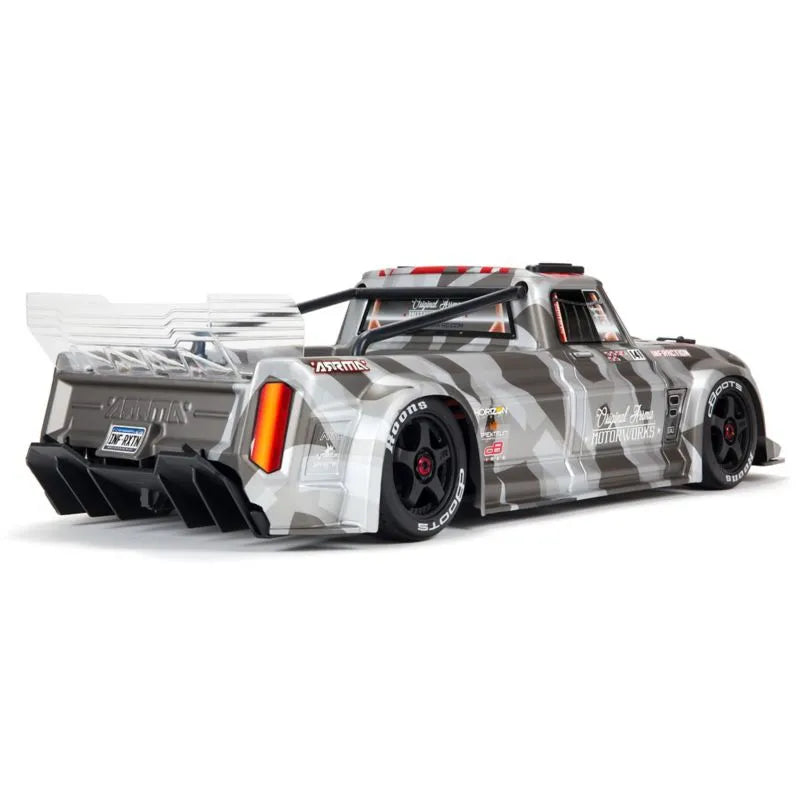

- Rear diffuser increases downforce and grip for cornering faster and with confidence
- Adjustable front and rear body mounts

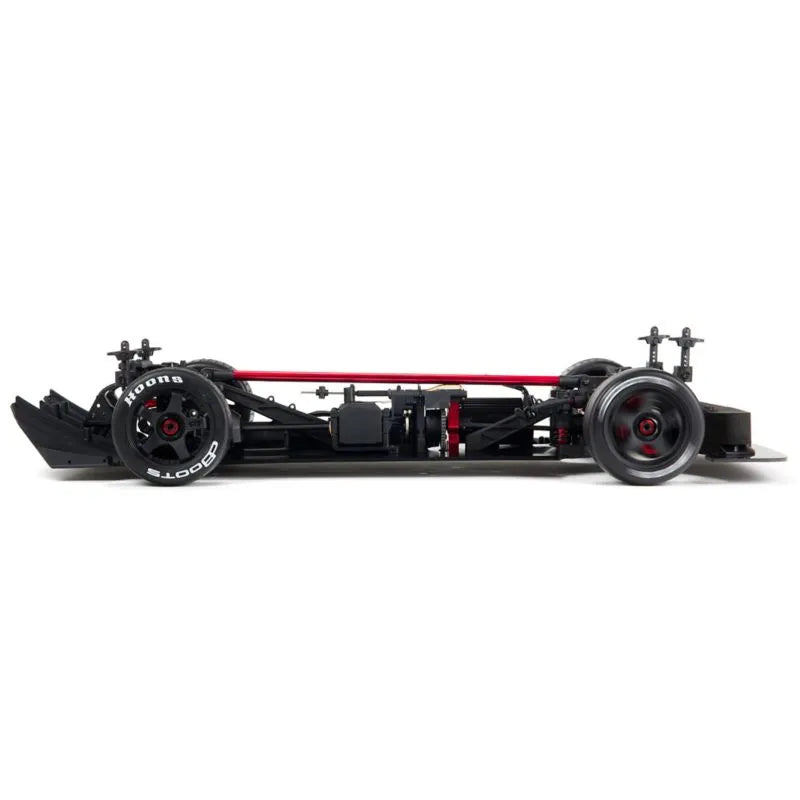

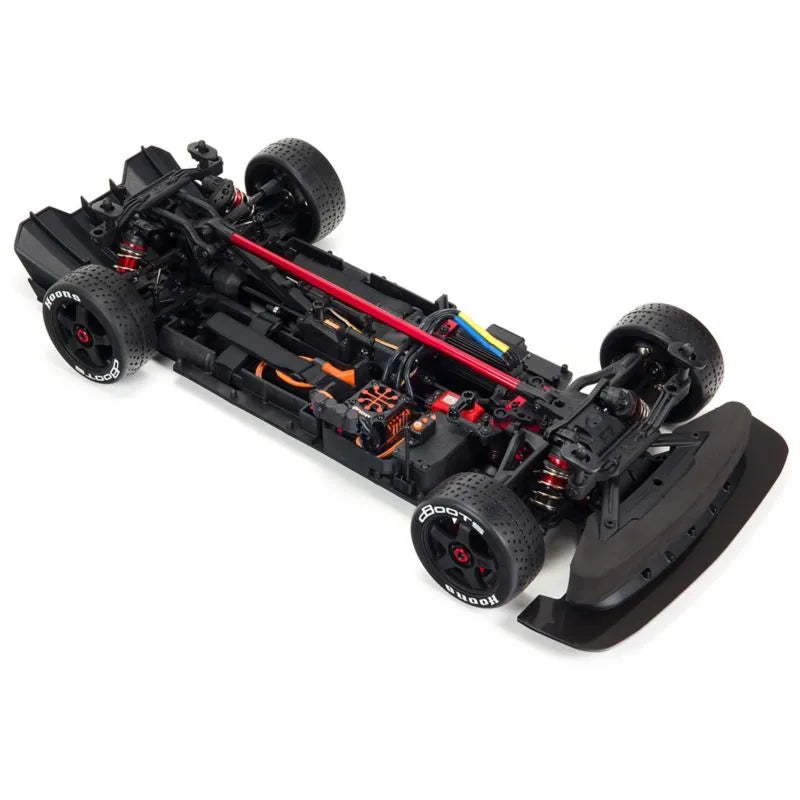

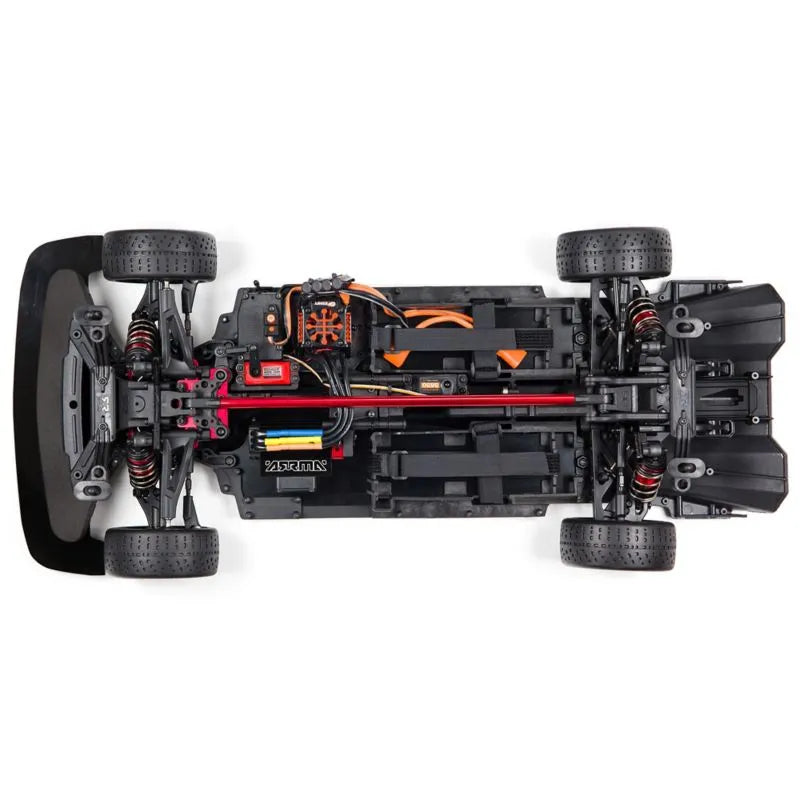

- 3mm Plate, 6061-T6 anodized aluminium chassis
- Centre brace for maximum durability
- Heavy-duty drivetrain with durable steel driveshafts throughout
- High-speed centre driveshaft support
- Rubber-shielded bearings

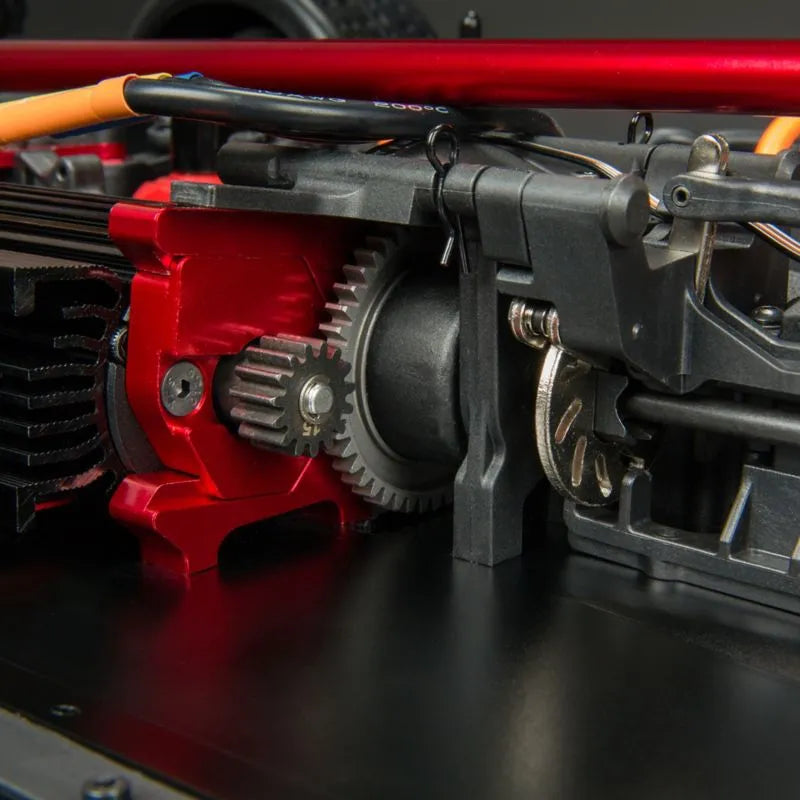

- All-metal diff outdrives and gearbox internals
- Updated internal gears with new tooth profile for increased strength
- Lower internal gear ratio to reduce the centre line transmission RPM, reducing centre driveshaft resonance and increasing drivetrain durability

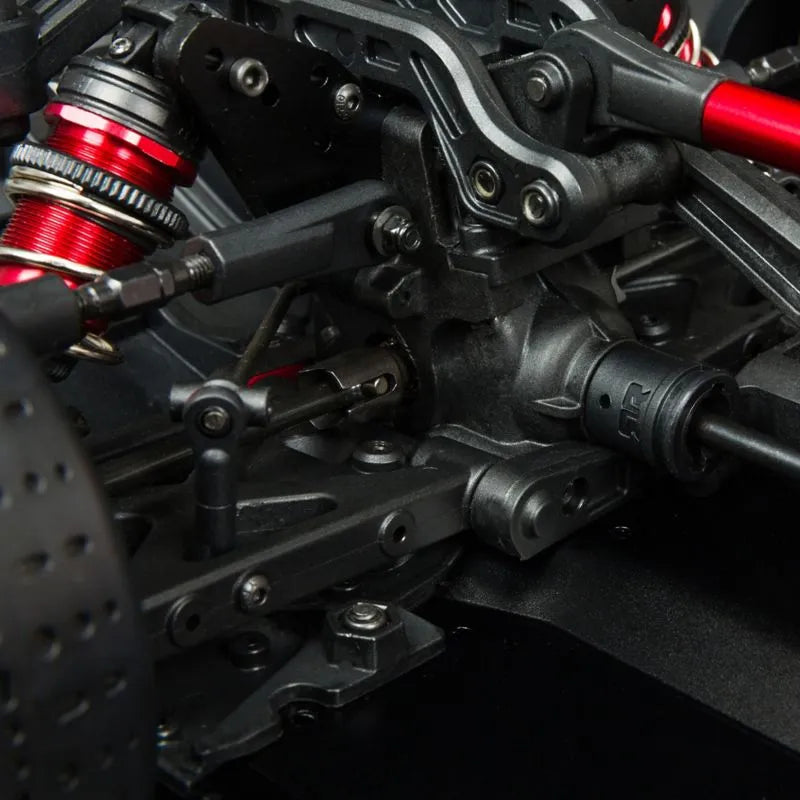

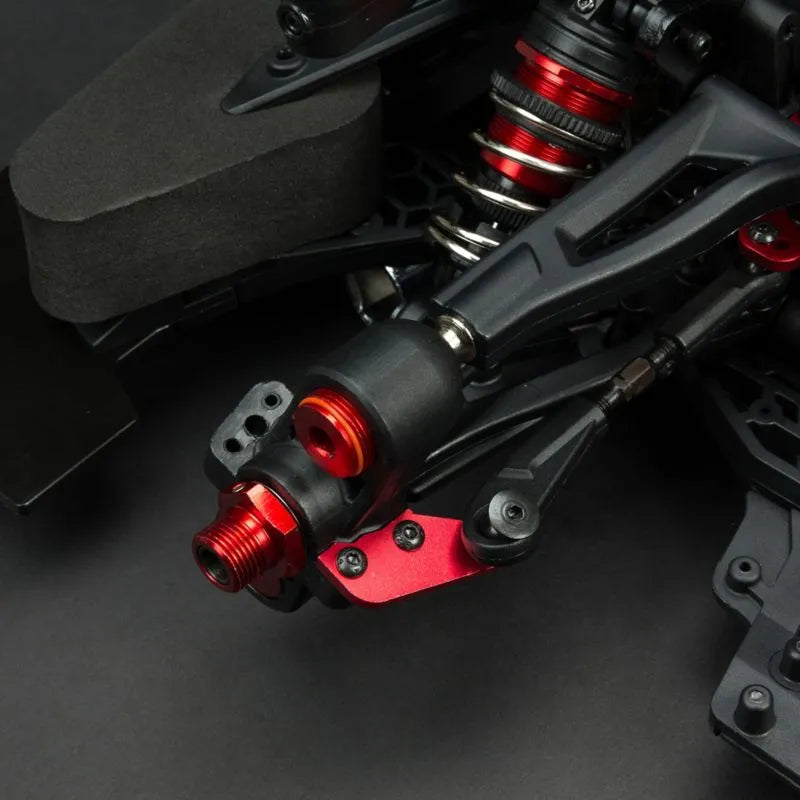

- Oil-filled, adjustable, anodized aluminium shocks
- Black-anodized aluminium front and rear shock towers
- Waterproof* receiver box
- Large battery trays
- 5-spoke wheels
- Durable wheel hubs

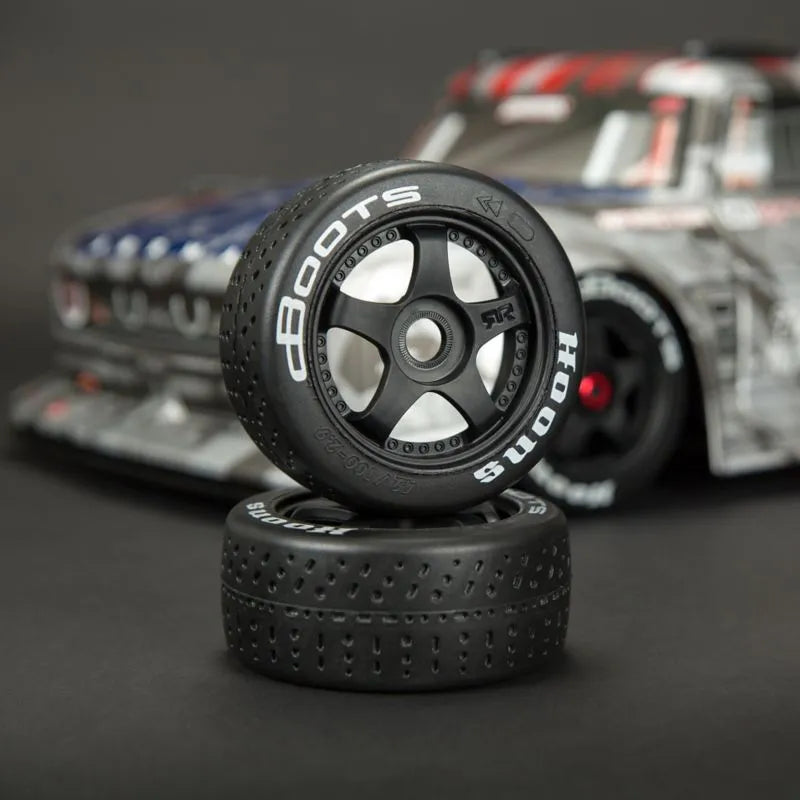

- dBoots® Hoons™ all-road tires
- 2-year limited warranty (see website for details)
* For details on waterproof standards, please refer to the product instruction manuals
What you need
- (2) 2S or 3S LiPo batteries
- Compatible charger
- Safe LiPo charging bag
- (4) AA transmitter batteries
Specs
- Completion Level
- Ready-to-Run
- Scale
- 1/7
- Length
- 27.36 in (695mm)
- Width
- 12.20 in (310mm)
- Height
- 7.87 in (200mm)
- Weight
- 11 lb (5kg)
- Ground Clearance
- 0.59 in (15mm)
- Wheelbase
- 15.98 in (406mm)
- Front Track
- 12.13 in (308mm)
- Rear Track
- 12.01 in (305mm)
- Chassis
- 3mm Plate, 6061-T6 Aluminium
- Suspension
- Independent
- Shock Type
- 3.03 in (77mm) FR, 3.43 in (87mm) RR. Aluminium
- Drivetrain
- 4WD
- Differential
- Three oil-filled metal gear diffs
- Wheel Type
- 5-Spoke, 17mm hex
- Wheel Diameter
- 3.27 in Inner, 2.95 in Outer (83mm Inner, 75mm Outer)
- Wheel Width
- 1.69 in (43mm)
- Tyre Compound
- White
- Tyre Tread
- Hoons™
- Tyre Diameter
- 3.94 in (100mm)
- Motor Type
- Non-sensored Brushless
- Motor Size
- 4074
- Pinion
- 15T
- Spur Gear
- 46T
- Gear Pitch
- 1.0MOD
- Internal Gear Ratio
- 2.8:1
- Final Drive Ratio
- 8.58:1
- Speed Control Included
- Yes
- Radio
- Spektrum® DX3™ 3-Channel
- Servos Included
- Yes
- Brakes
- Metal disc with metal pads
- Body
- INFRACTION, Screen printed, decaled and trimmed
- Ball Bearings
- Transmission
- Experience Level
- Intermediate
- Recommended Environment
- All-Road
- Is Assembly Required
- No
- Approximate Assembly Time
- Less than 1 hour
